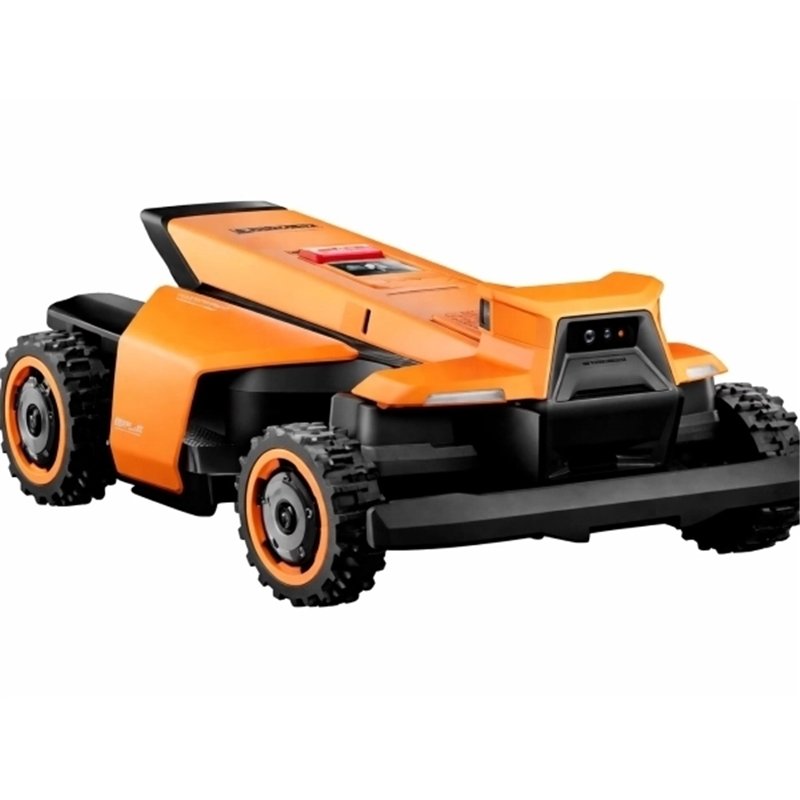

Segway Navimow Terranox CM240M1E – professional 4WD wire-free robotic mower – up to 24,000 m2

The Segway Navimow Terranox CM240M1E is built for commercial-grade mowing on large and complex lawns. No perimeter wire is required: mapping, virtual boundaries, multi-zones and no-go areas are handled in the app. It then mows in systematic lanes for a clean, consistent finish.

The 4WD AWD drive system maintains grip on rough terrain and tackles slopes up to 40 degrees (84%). A dual-disc cutting system (12 blades total) plus a wide 43 cm cutting width delivers high productivity. Obstacle avoidance combines 360-degree vision and depth sensing for safer operation in demanding environments.

For professional users, fleet management helps you monitor and manage multiple mowers via an app and a web portal.

Key benefits

• Up to 24,000 m2 (± 20%)

• No boundary wire: virtual setup in the app

• Systematic lane mowing

• 4WD AWD: slopes up to 40 degrees (84%)

• Dual discs, 12 blades total

• 43 cm cutting width, high mowing efficiency

• 360-degree obstacle detection with depth sensing

• Auto return to charge and auto resume

• Connectivity: Wi-Fi, 4G, Bluetooth

• GPS anti-theft and mapping assistance

• IP66: mower, charging station and charger

Core specifications

• Max area (± 20%): 24,000 m2

• Battery (21.6V): Li-ion 25Ah (540Wh)

• Mowing efficiency (standard): 850 m2/hour

• Max speed (standard): 60 m/min (about 1.0 m/s)

• Average runtime (± 20%): about 3 hours

• Charging time: about 3 hours

• Max slope: 84% (40 degrees)

• Multi-zone: yes

• Weather adaptive: yes

• Planned mowing route: yes

• Return to base: yes

• Interface: keypad + app control

• Automatic updates: 2 years via 4G

• Positioning / signal: EFLS 3.0 (NRTK + 360 VSLAM + VIO)

• Blades: 2 discs, 6 blades per disc (12 blades)

• Cutting width: 43 cm

• Cutting height: 20 to 100 mm

• Cutting height adjustment: via app + mower

• Edge mowing: yes

• IP rating mower: IP66

• IP rating station + charger: IP66

• Weight (incl. battery): 29.2 kg

• Dimensions (L x W x H): 850 x 610 x 351 mm

In the box (general)

• Terranox CM240M1E mower

• Charging station + power supply

• Installation and mounting kit

• Documentation

Warranty

• Housing warranty: 2 years

• Battery warranty: 1 year

• VisionFence / camera warranty: 1 year
