SX10A04-FRAME ASSY, 22

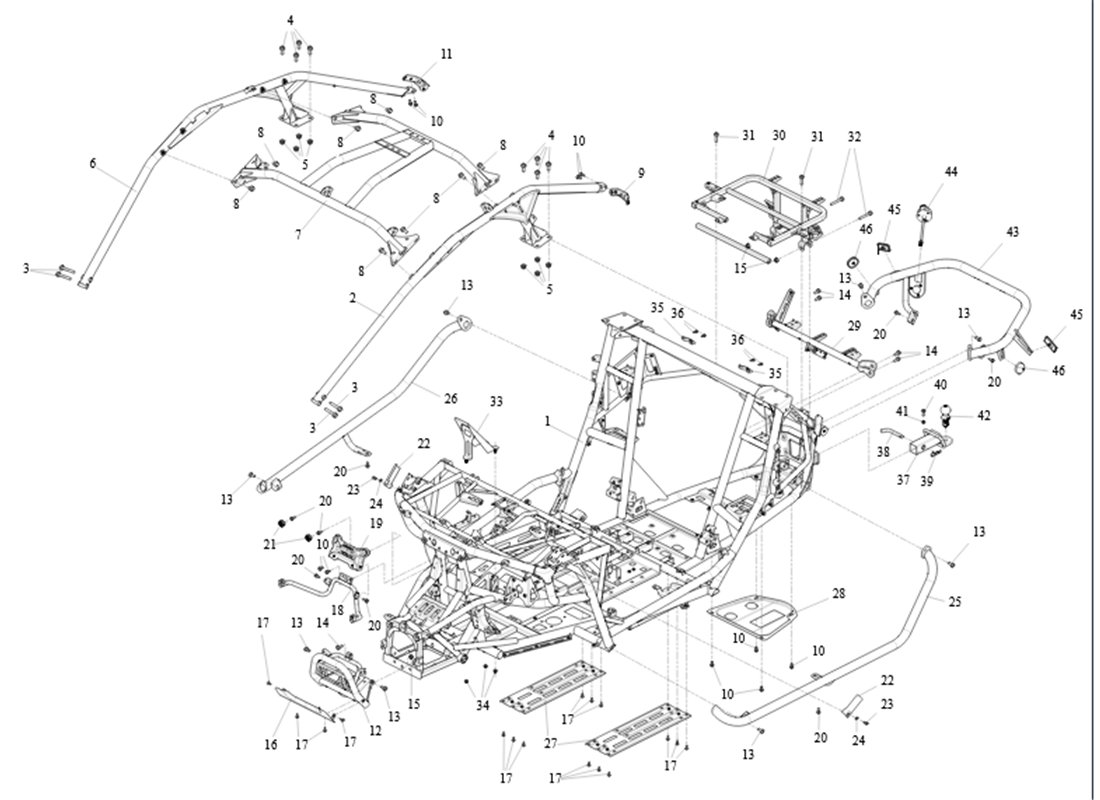

SX10A04 Frame Assembly for BODY
Number
Reference

Name
Price
Stock

1
S05B01000002

Segway FRAME（RED) - Partnr: S05B01000002
Price €3,352.99
Available on order
1
S05B01000003

Segway FRAME (GREEN) - Partnr: S05B01000003
Price €3,352.99
Available on order
1
S05B01000005

Segway FRAME (BLACK) - Partnr: S05B01000005
Price €3,352.99
Available on order
2
S03-C111000-FR0-01

Segway TOP BEAM LEFT(RED) - Partnr: S03-C111000-FR0-01
Price €355.99
Available on order
2
S03-C111000-FG0-01

Segway TOP BEAM LEFT(GREEN) - Partnr: S03-C111000-FG0-01
Price €355.99
Available on order
2
S03-C111000-FB0-01

Segway TOP BEAM LEFT(BLACK） - Partnr: S03-C111000-FB0-01
Price €355.99
Last items in stock 1
3
GBT005789102

Segway HEX FLANGE BOLT M12×1.25×75 - Partnr: GBT005789102
Price €2.60
In stock 8
4
GBT005789054

Segway BOLT M12×1.25×30 - Partnr: GBT005789054
Price €1.80
In stock 21
5
GBT061832002

Segway HEXAGON FLANGE LOCK NUT M12 - Partnr: GBT061832002
Price €0.70
In stock 44
6
S03-C113000-FR0-01

Segway TOP BEAM RIGHT(RED) - Partnr: S03-C113000-FR0-01
Price €355.99
Available on order
6
S03-C113000-FG0-01

Segway TOP BEAM RIGHT(GREEN) - Partnr: S03-C113000-FG0-01
Price €355.99
Available on order
6
S03-C113000-FB0-01

Segway TOP BEAM RIGHT(BLACK) - Partnr: S03-C113000-FB0-01
Price €355.99
Last items in stock 1
7
S03-C112000-FR0-01

Segway TOP BEAM UPPER（RED） - Partnr: S03-C112000-FR0-01
Price €403.00
Available on order
7
S03-C112000-FG0-01

Segway TOP BEAM UPPER (GREEN) - Partnr: S03-C112000-FG0-01
Price €403.00
Available on order
7
S03-C112000-FB0-01

Segway TOP BEAM UPPER (BLACK) - Partnr: S03-C112000-FB0-01
Price €403.00
Last items in stock 1
8
GBT005789045

Segway HEXAGON FLANGE BOLT M12×1.25×25 - Partnr: GBT005789045
Price €1.29
In stock 20
9
S01C03700002

Segway UPPER LEFT MOUNTING BRACKET ASSY - Partnr: S01C03700002
Price €7.20
Last items in stock 1
10
GBT005789014

Segway HEXAGON FLANGE BOLT M8×16 - Partnr: GBT005789014
Price €0.40
In stock 149
11
S01C03800002

Segway UPPER RIGHT MOUNTING BRACKET ASSY - Partnr: S01C03800002
Price €7.20
Last items in stock 1
12
S05-C009000-FB0-00

Segway FRONT BUMPER (BLACK) - Partnr: S05-C009000-FB0-00
Price €143.00
Last items in stock 1
12
S05-C009000-FG0-00

Segway FRONT BUMPER (GREEN) - Partnr: S05-C009000-FG0-00
Price €143.00
Last items in stock 1
12
S05-C009000-FR0-00

Segway FRONT BUMPER (RED) - Partnr: S05-C009000-FR0-00
Price €143.00
Last items in stock 1
12
S01C00600002

Segway FRONT BUMPER (RED) - Partnr: S01C00600002
Price €150.00
This product is no longer available for sale.
12
S01C00600003

Segway FRONT BUMPER (GREEN) - Partnr: S01C00600003
Price €150.00
Last items in stock 2
12
S01C00600005

Segway FRONT BUMPER (BLACK) - Partnr: S01C00600005
Price €140.00
Available on order
13
GBT005789025

Segway HEXAGON FLANGE BOLT M10×1.25×20 - Partnr: GBT005789025
Price €0.80
In stock 12
14
GBT005789026

Segway HEXAGON FLANGE BOLTM10×1.25×25 - Partnr: GBT005789026
Price €0.70
In stock 32
15
GBT061832001

Segway NUT M10×1.25 - Partnr: GBT061832001
Price €0.50
In stock 30
16
S01C00700002

Segway BUMPER TRIM PANEL（FROSTED SILVER） - Partnr: S01C00700002
Price €58.00
Available on order
16
S01C00700003

Segway BUMPER TRIM PANEL（SILVER GRAY） - Partnr: S01C00700003
Price €58.00
Available on order
17
T03000007002

Segway BOLT M6×16 - Partnr: T03000007002
Price €0.50
In stock 138
18
S05-C021000-DB0-00

Segway FRAME FRONT SUPPORT ASSEMBLY (BLACK) - Partnr: S05-C021000-DB0-00
Price €36.00
Available on order
19
S01C005A1002

Segway FRONT SUPPORT UPPER PLATE（RED） - Partnr: S01C005A1002
Price €40.99
Available on order
19
S01C005A1003

Segway FRONT SUPPORT UPPER PLATE（GREEN） - Partnr: S01C005A1003
Price €40.99
Available on order
20
GBT005789015

Segway HEXAGON FLANGE BOLT M8×20 - Partnr: GBT005789015
Price €0.40
In stock 197
21
S01H21000001

Segway DECORATIVE PLUG - Partnr: S01H21000001
Price €2.50
In stock 9
22
S05B30050002

Segway A-PILLAR DECORATION（RED） - Partnr: S05B30050002
Price €13.00
Available on order
22
S05B30050003

Segway A-PILLAR DECORATION（GREEN） - Partnr: S05B30050003
Price €13.00
Available on order
22
S05B30050005

Segway A-PILLAR DECORATION（BLACK） - Partnr: S05B30050005
Price €12.00
Last items in stock 2
23
GBT000701013

Segway HEXAGON SOCKET HEAD CAP SCREW M8×12 - Partnr: GBT000701013
Price €0.40
In stock 20
23
S01C02000001

Segway DOOR LATCH - Partnr: S01C02000001
Price €4.01
Last items in stock 2
24
S01-C023000-FB0-00

Segway LEFT GUARD BAR(BLACK) - Partnr: S01-C023000-FB0-00
Price €112.00
Last items in stock 1
24
S01-C023000-FG0-00

Segway LEFT GUARD BAR(GREEN) - Partnr: S01-C023000-FG0-00
Price €112.00
Last items in stock 1
24
S01-C023000-FR0-00

Segway LEFT GUARD BAR(RED) - Partnr: S01-C023000-FR0-00
Price €112.00
Last items in stock 1
24
S01C02300002

Segway LEFT GUARD BAR(RED) - Partnr: S01C02300002
Price €140.00
Last items in stock 1
24
S01C02300003

Segway LEFT GUARD BAR(GREEN) - Partnr: S01C02300003
Price €140.00
Last items in stock 2
24
S01C02300005

Segway LEFT GUARD BAR(BLACK) - Partnr: S01C02300005
Price €109.00
Available on order
25
S01-C024000-FB0-00

Segway RIGHT GUARD BAR (BLACK) - Partnr: S01-C024000-FB0-00
Price €112.00
Last items in stock 1
25
S01-C024000-FG0-00

Segway RIGHT GUARD BAR (GREEN) - Partnr: S01-C024000-FG0-00
Price €112.00
Last items in stock 1
25
S01-C024000-FR0-00

Segway RIGHT GUARD BAR (RED) - Partnr: S01-C024000-FR0-00
Price €112.00
Last items in stock 1
25
S01C02400002

Segway RIGHT GUARD BAR (RED) - Partnr: S01C02400002
Price €140.00
Last items in stock 1
25
S01C02400003

Segway RIGHT GUARD BAR (GREEN) - Partnr: S01C02400003
Price €140.00
Available on order
25
S01C02400005

Segway RIGHT GUARD BAR (BLACK) - Partnr: S01C02400005
Price €109.00
Available on order
26
S01B37200002

Segway MIDDLE FLOOR GUARD - Partnr: S01B37200002
Price €56.00
Last items in stock 2
27
S05-C051000-DB0-00

Segway ENGINE LOWER GUARD - Partnr: S05-C051000-DB0-00
Price €49.01
Last items in stock 1
28
S05B00300002

Segway SAFETY BELT FIXING BRACKET COMBINATION - Partnr: S05B00300002
Price €68.99
Last items in stock 1
29
S05-C028000-DB0-00

Segway REAR CARGO BOX BRACKET ASSEMBLY - Partnr: S05-C028000-DB0-00
Price €83.01
Last items in stock 1
30
GBT005789029

Segway HEXAGON FLANGE BOLT M10×1.25×40 - Partnr: GBT005789029
Price €1.10
In stock 10
31
GBT005789086

Segway HEXAGON FLANGE BOLT M10×1.25×75 - Partnr: GBT005789086
Price €1.60
In stock 10
32
S01C05400002

Segway FRONT PASSENGER SEAT PEDAL ASSEMBLY - Partnr: S01C05400002
Price €31.00
Last items in stock 1
33
GBT061831003

Segway NUT M8 - Partnr: GBT061831003
Price €0.30
In stock 47
34
S05C02812002

Segway REAR CARGO BOX UPPER BRACKET - Partnr: S05C02812002
Price €4.40
Last items in stock 2
35
GBT005789007

Segway HEXAGON FLANGE BOLT M6×16 - Partnr: GBT005789007
Price €0.61
In stock 119
36
S01C20300002

Segway TRAILER HITCH - Partnr: S01C20300002
Price €58.00
Last items in stock 1
37
U01R21300002

Segway TRAILER HITCH PIN - Partnr: U01R21300002
Price €5.51
Available on order
38
QCT000623002

Segway LOCK PIN 12 - Partnr: QCT000623002
Price €0.40
In stock 8
39
GBT005789016

Segway HEXAGON FLANGE BOLT M8×25 - Partnr: GBT005789016
Price €0.30
In stock 196
40
GBT006170004

Segway Type 1 Hexagon Nut M8 - Partnr: GBT006170004
Price €0.10
In stock 12
41
U01R21100001

Segway HITCH BALL - Partnr: U01R21100001
Price €47.00
Last items in stock 2
42
S05-C025500-FB0-01

Segway REAR BUMPER(BLACK) - Partnr: S05-C025500-FB0-01
Price €130.00
Last items in stock 1
42
S05-C025500-FG0-01

Segway REAR BUMPER(GREEN) - Partnr: S05-C025500-FG0-01
Price €130.00
Last items in stock 1
42
S05-C025500-FR0-01

Segway REAR BUMPER(RED) - Partnr: S05-C025500-FR0-01
Price €130.00
Last items in stock 1
43
U01M04500004

Segway TRAILER POWER OUTPUT ASSY - Partnr: U01M04500004
Price €47.00
Last items in stock 1
44
T10000001003

Segway SQUARE REFLECTOR - Partnr: T10000001003
Price €1.40
Last items in stock 2
45
T10000001002

Segway CIRCULAR REFLECTOR (RED) - Partnr: T10000001002
Price €1.40
In stock 6
46
S05-H162010-0B0-00

Segway REAR LEFT REFLECTOR SEAT - Partnr: S05-H162010-0B0-00
Price €3.00
Available on order
47
S05-H162011-0B0-00

Segway REAR RIGHT REFLECTOR SEAT - Partnr: S05-H162011-0B0-00
Price €3.00
Available on order
48
S05-C012000-DB0-00

Segway REFLECTOR BRACKET - Partnr: S05-C012000-DB0-00
Price €7.60
Last items in stock 1
49
GBT005789030

Segway BOLT M10×1.25×45 - Partnr: GBT005789030
Price €1.00
In stock 14
50
GBT005789027

Segway HEXAGON FLANGE BOLT M12×1.25×30 - Partnr: GBT005789027
Price €1.00
In stock 14
51
S05-C011000-DB0-00

Segway RECTIFIER BRACKET - Partnr: S05-C011000-DB0-00
Price €11.00
Last items in stock 1
52
GBT005789065

Segway HEXAGON FLANGE BOLT M6×30 - Partnr: GBT005789065
Price €0.30
In stock 20
53
S01C02505002

Segway S01_Rear License Plate Lamp Bracket_Elec - Partnr: S01C02505002
Price €26.00
Last items in stock 3
