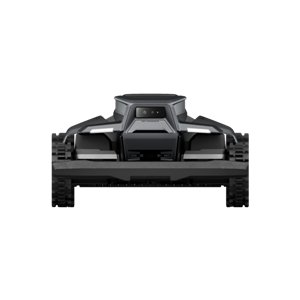

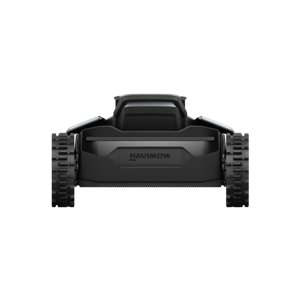

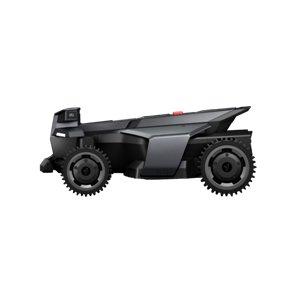

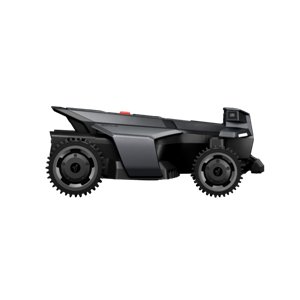

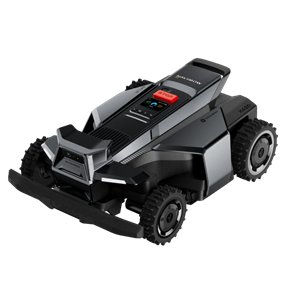

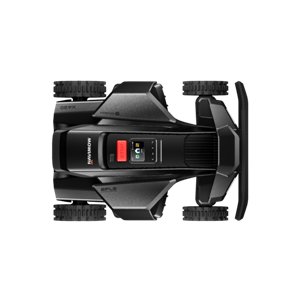

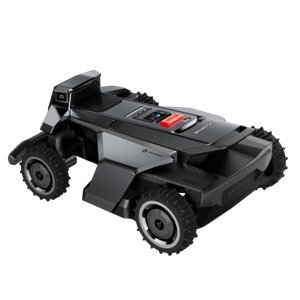

The Segway Navimow X420E Black from the X4 Series is designed to keep large lawns perfectly maintained without a perimeter wire. You create a virtual map in the app, manage zones and no-go areas, and the mower then works in systematic lanes for a clean, even finish.
Its Xero-Turn 4WD drive, traction control and front-wheel zero-turn steering help it maneuver smoothly while protecting the turf. It is engineered for slopes up to 84% (40 deg) and obstacles up to 7 cm.
Positioning is based on Network RTK (NRTK) for high accuracy. Antenna-free operation is possible via network coverage, and a GNSS antenna is included for optional installation so you can choose between network-based or local base-station positioning.
When the battery is low, it returns to charge automatically, fast-charges, and resumes where it stopped.
Key benefits
-
No boundary wire: virtual setup in the app
-
Supported mapping area (EU): up to 2000 m2
-
4WD with traction control and turf-safe zero-turn steering
-
Systematic lane mowing
-

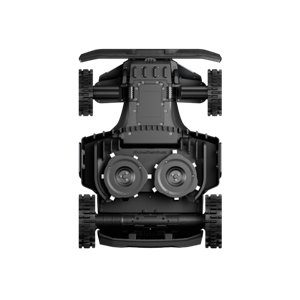

Wide 43 cm deck, dual discs, 12 blades
-
Fast charging and auto resume
-
360-degree panoramic obstacle avoidance
-
Multi-zone management (up to 120 zones incl. no-go)
-
IP66 rated, easy to rinse
-
68 dB(A) during normal operation
-
Smart features: weather adaptation, voice control, OTA updates, doodle patterns
Core specs (X420E)
-
Max supported mapping area (EU): 2000 m2
-
Cutting width: 430 mm (43 cm)
-
Cutting system: dual discs, 12 blades
-
Cutting height: 20 – 95 mm
-
Max speed: up to 0.8 m/s
-
Max slope: 84% (40 deg)
-
Obstacle handling: up to 7 cm
-
Battery: 10 Ah
-
Charging time: about 75 min (10% to 100% at 25C)
-
Runtime: about 90 min
-
Area per charge: about 675 m2
-
Noise: 68 dB(A)
-
IP rating: IP66
-
Body dimensions (L x W x H): 850 x 610 x 351 mm
Service / data
-
NRTK: lifetime included according to manufacturer
-
4G data service (X420): 1 year included, optional renewal afterwards (pricing may change)
In the box
-
Navimow X4 mower (X420E) – 1x
-
Charging station + installation kit – 1x
-
Power extension cable – 1x
-
Spare blades + bolts – 36x
-
Pegs for the extension cable – 20x
-
Power supply – 1x
-
GNSS antenna – 1x
-
Antenna installation kit – 1x
-
Welcome card / important info / quick start guide – 1x
Warranty
-
Mower (X4 Series incl. X420): 3 years
-
Battery pack + power adapters: 2 years
-
Blades: consumable (not covered)
